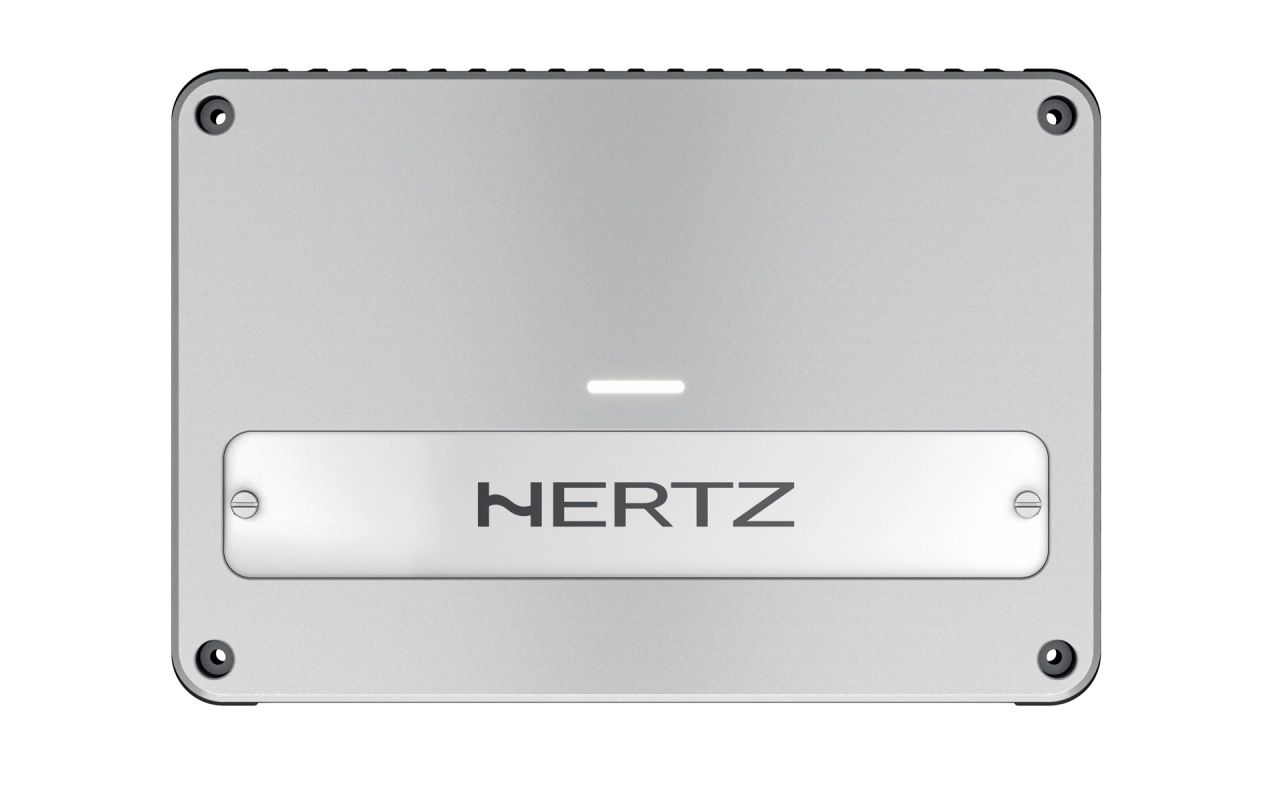

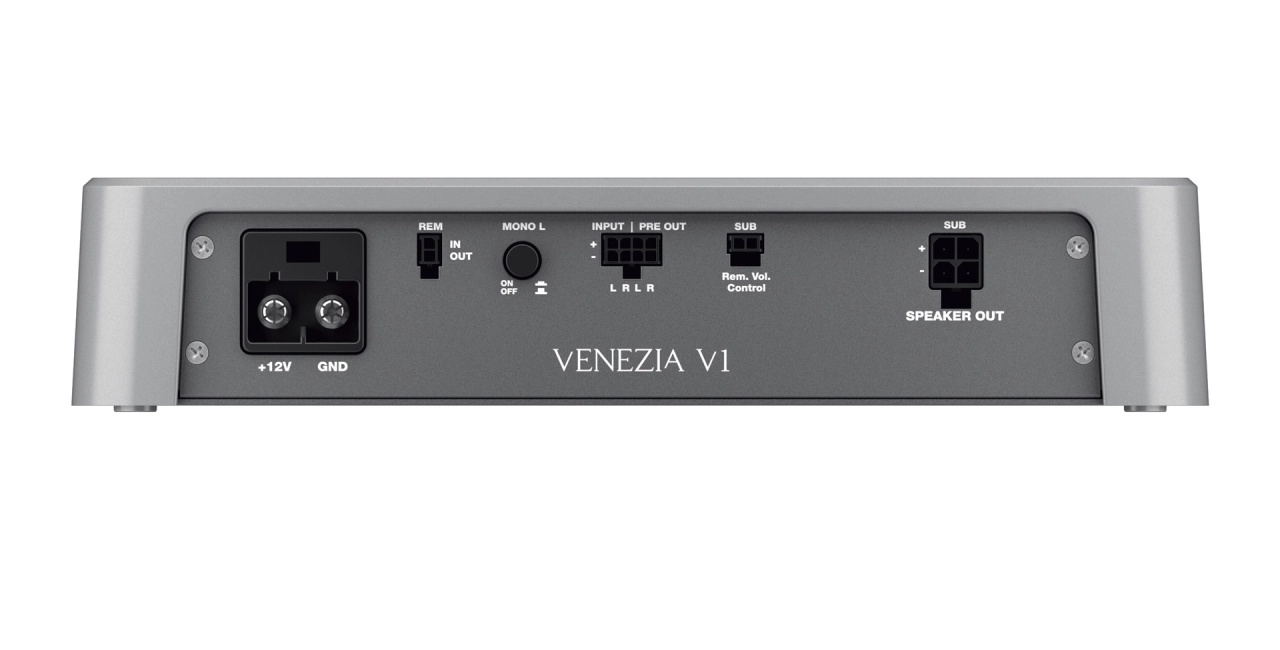

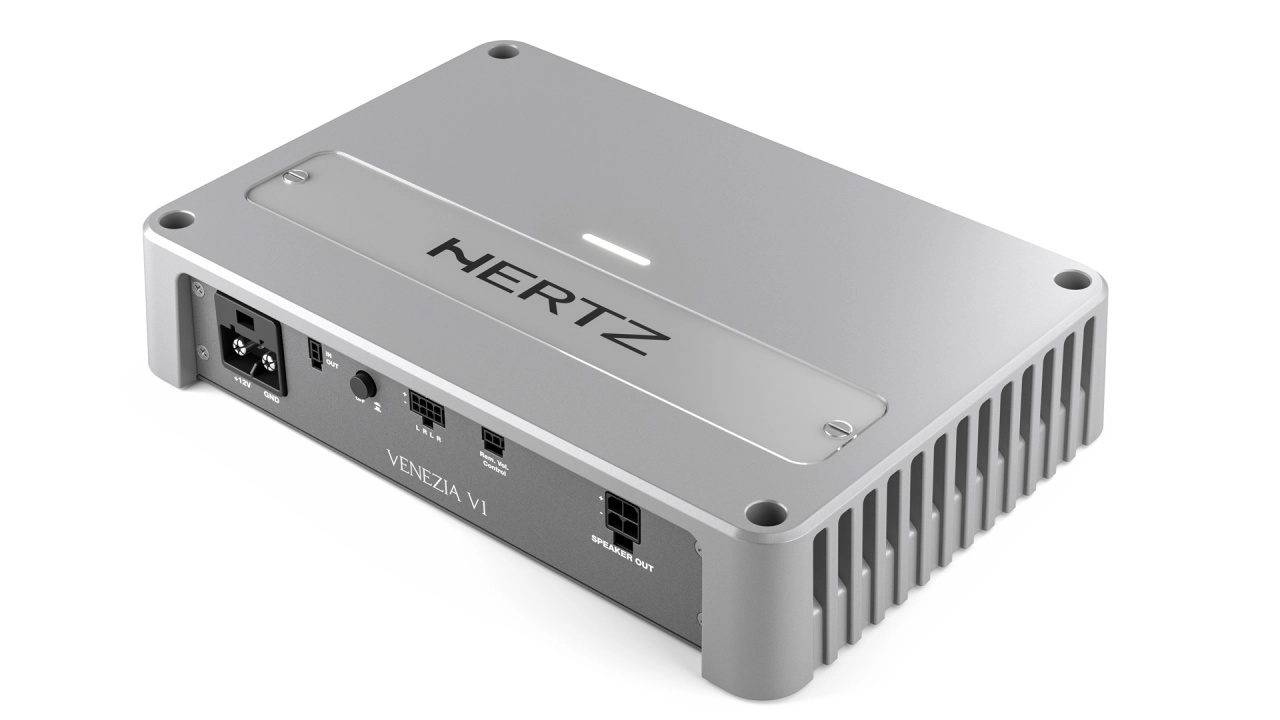

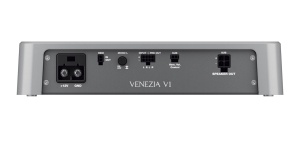

Amplificator marine Hertz VENEZIA V1, 24V, 1 canale, 1260W

Leírás

Manual de utilizare

Sperificatii Generale
Canale 1
ALIMENTARE
Tensiune alimentare  22 ÷ 33 VDC
Curent în gol (power ON/OFF): 1 A / 0.04 mA
Consum @ 1Ω, 28.8 VDC (PEAK): 27A
Remote In: 7 ÷ 33 VDC - 1 mA
Distorsiune - THD (100Hz @ 4Ω): <0,02%
Banda de frecventa: 10 ÷ 500 Hz
Raport S/N (A weighted @ 1 V): 102 dB
Factor de amortizare (100Hz @ 4Ω) 500
Sensibilitate Pre-In: 0.2 ÷ 5 VRMS
Impedanta Pre-In: 10kΩ
Impedanta sarcina (MIN) 1 Ω
Crossover reglabil da

INPUTURI / FILTRE
Intrari: PRE IN
Pre Out: Filtru Hi-Pass 50 ÷ 250 Hz @ 12 dB/Oct
Filtre: Da
By-pass: Da (Complet)
Lo-Pass: 50 ÷ 500 Hz @ 24 dB/Oct
Faza (reglabila): (0 ÷ 180°)
Subsonic: 25 Hz @ 24 dB/Oct
Bass boost 50 Hz (reglabil): (0 ÷ 12) dB

Putere de Iesire
PUTERE IESIRE (RMS) @ 28.8 VDC, THD 1%
1Ch 700 W (4Ω)
1Ch 1260 W (2Ω)
1Ch 1260 W (1Ω)
Putere Totala PEAK 1260 W
