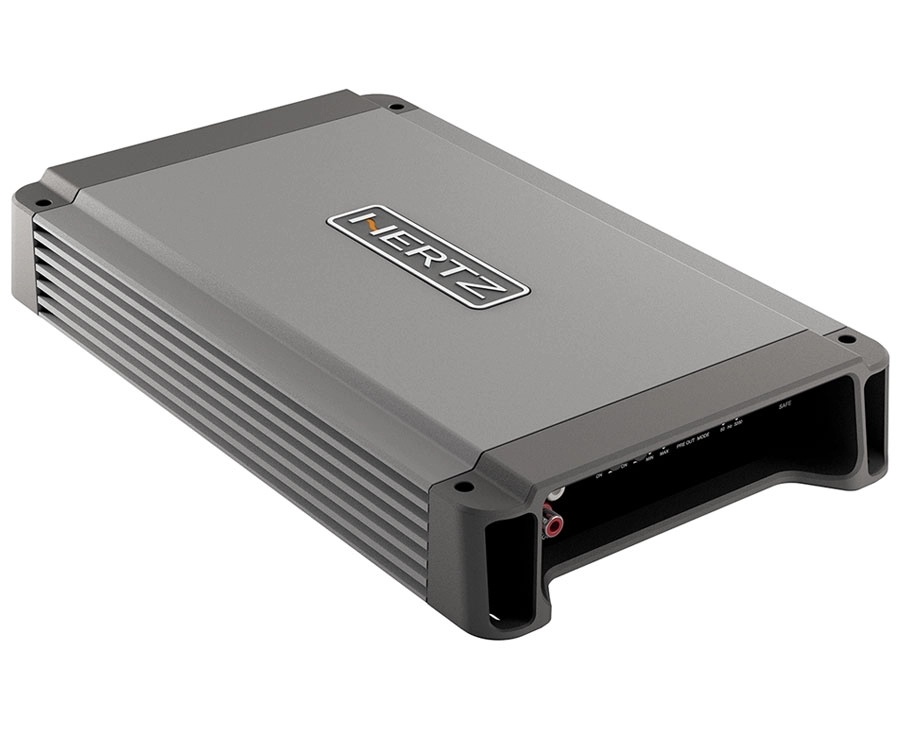

Amplificator Marine Hertz HCP 2MX, 2 canale 800W RMS

Descriere

Numar de Canale:   2

Distorsion - THD (100 Hz @ 4): 0.03 %

Bandwidth: 10 ÷ 65k Hz

S/N Ratio (A weighted @ 1 V): 105 dB

Damping factor (100 Hz @ 4): 300

Pre-In sensitivity: 0.2 ÷ 5 VRMS

Speaker-In sensitivity: 0.8 ÷ 20 VRMS

Load impedance (MIN)

@ 2 Ch:   2Ω

@ 1 Ch:   4Ω

OUTPUT POWER (RMS) @ 14.4 VDC, THD 1%:

2 Ch:    100 W x 2 (4 )

2 Ch:    160 W x 2 (2 )

1 Ch:    320 W x 1 (4 )

OUTPUT POWER (RMS) @ 14.4 VDC, THD 10%:

2 Ch:   120 W x 2 (4 )

2 Ch:   200 W x 2 (2 )

1 Ch:   400 W x 1 (4 )

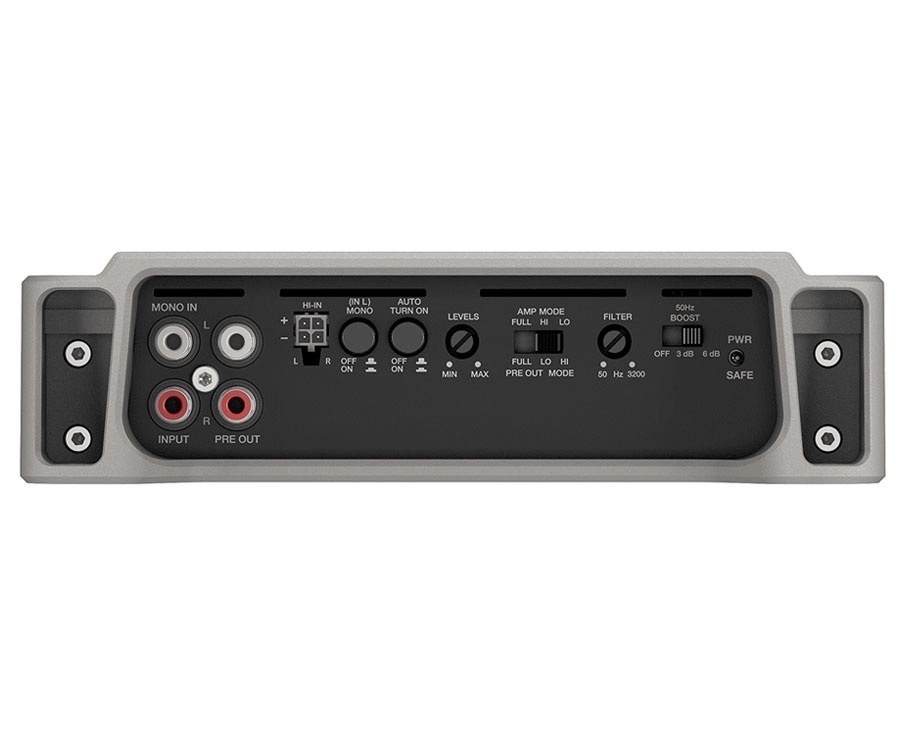

Intrari: PRE IN / SPEAKER IN

Iesire completa:   Da

Hi-Pass:   50 ÷ 3200 Hz @ 12 dB / Oct.

Lo-Pass:   50 ÷ 3200 Hz @ 12 dB / Oct.

Filtre COMPLETE:   Da

Hi-Pass:    50 ÷ 3200 Hz @ 12 dB / Oct.

Lo-Pass:    50 ÷ 3200 Hz @ 12 dB / Oct.

MONO (pornit / oprit): Da

BOOST 50 Hz (selectati): (0/3/6) dB
