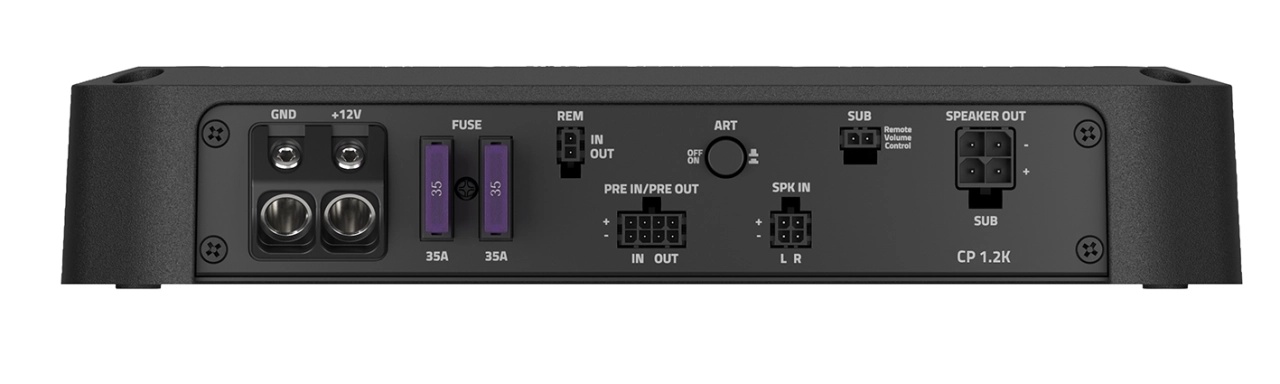

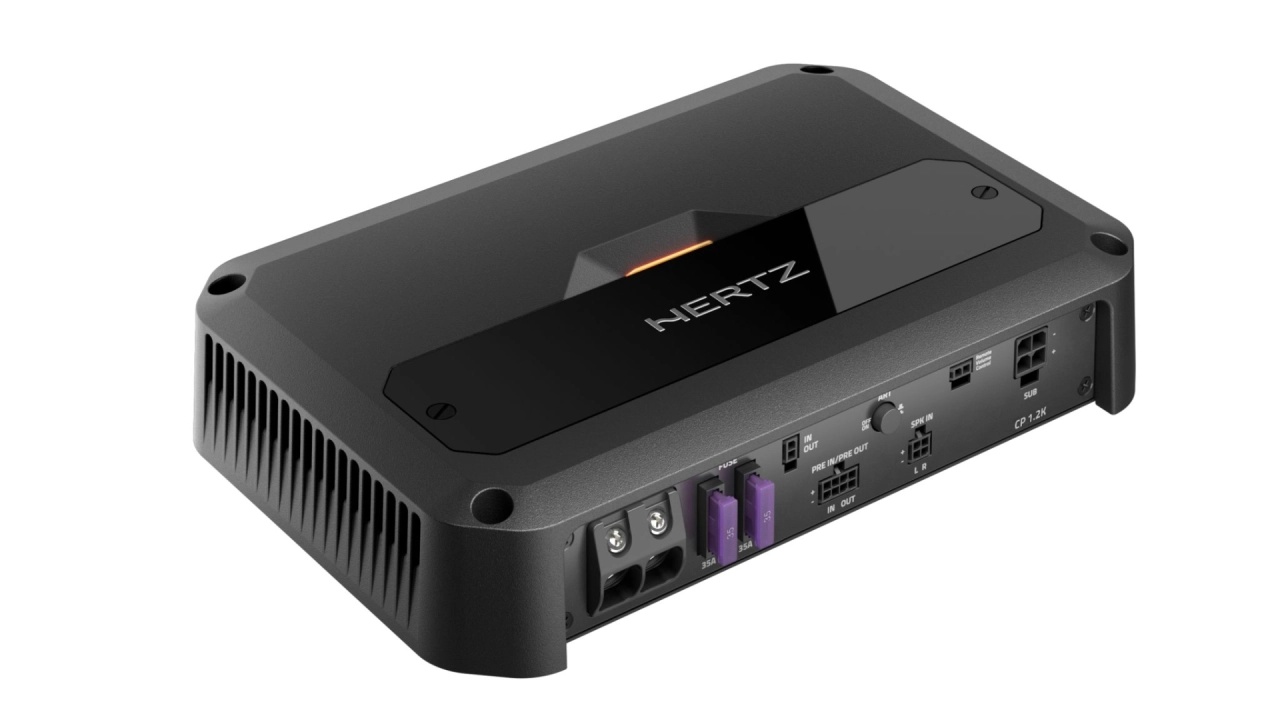

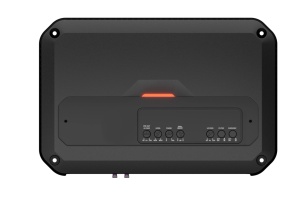

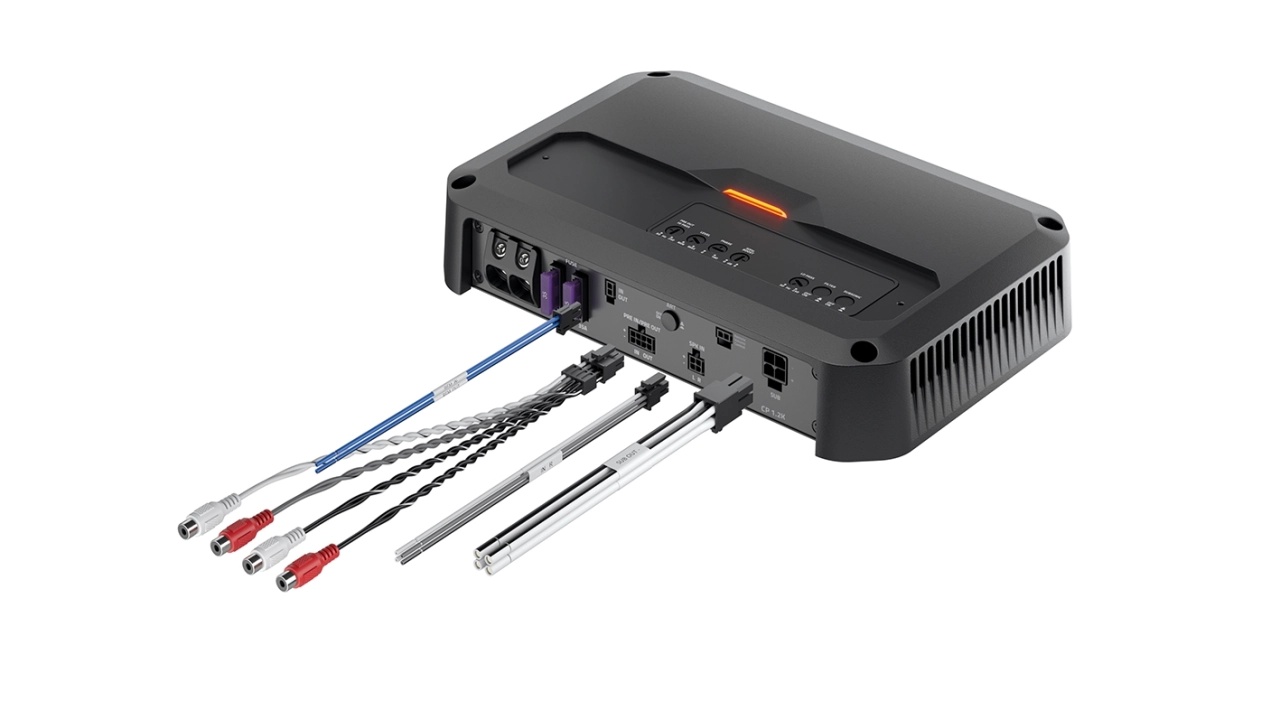

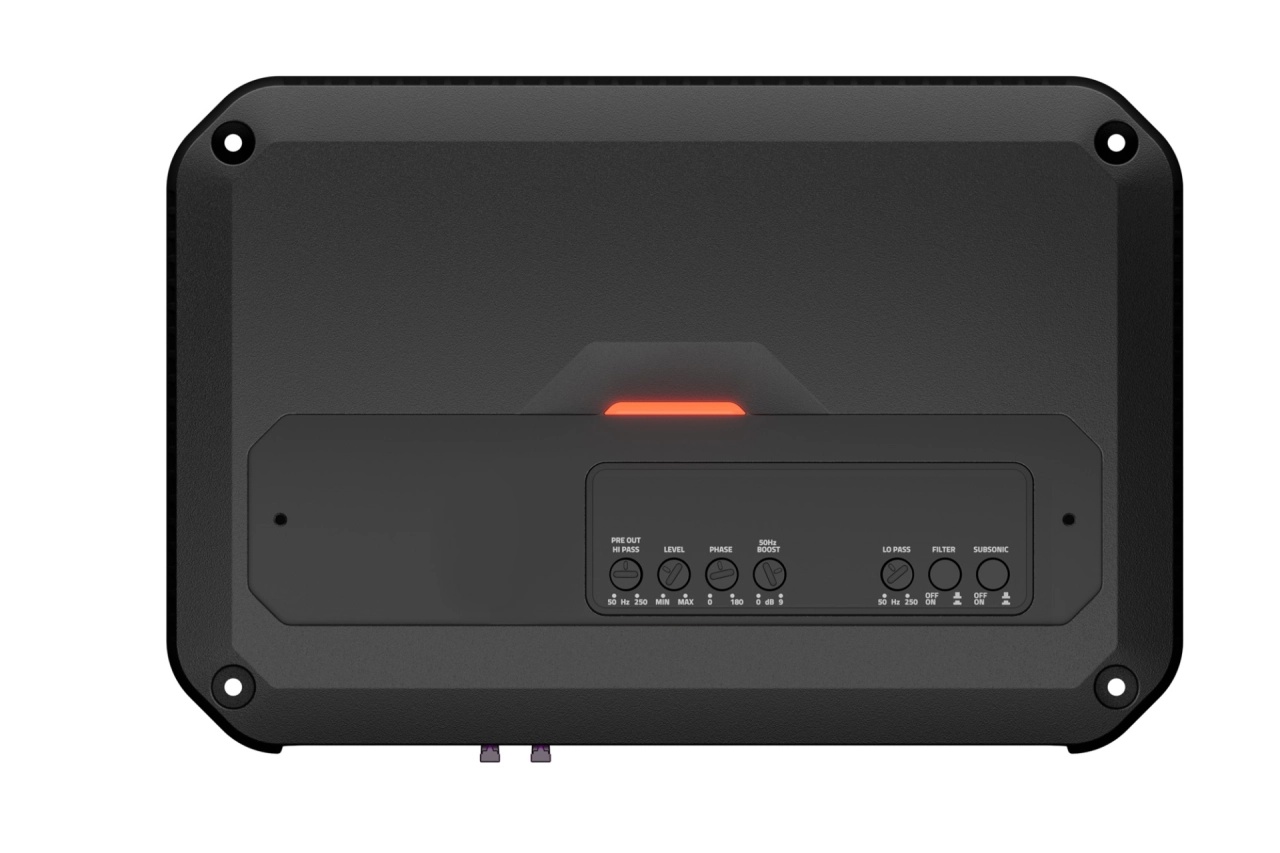

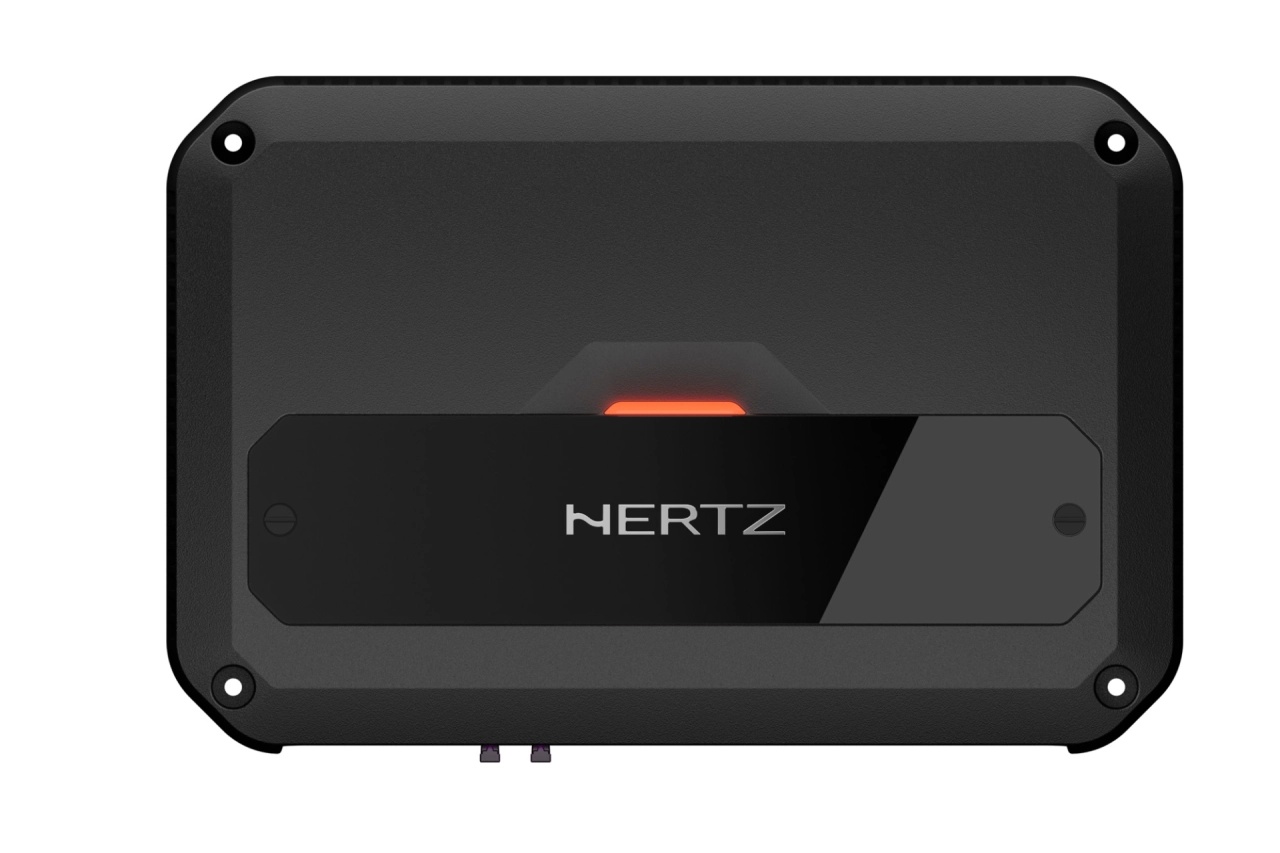

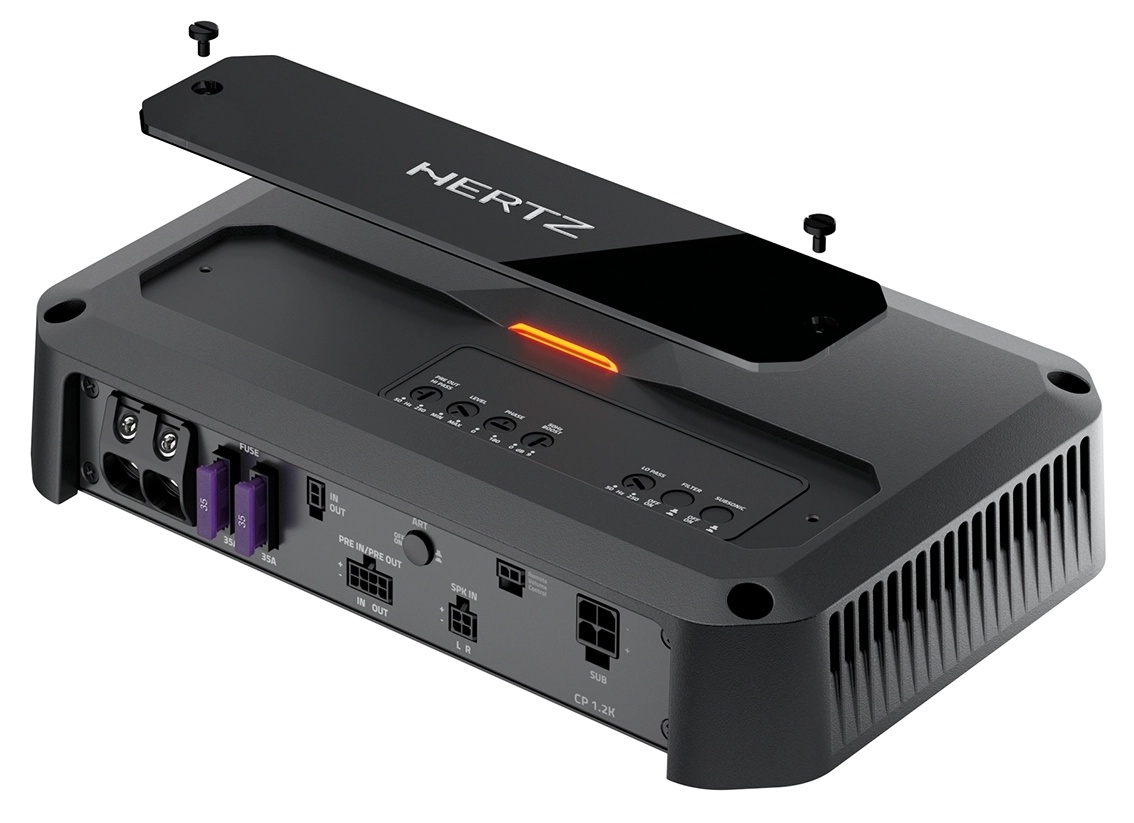

Amplificator auto HERTZ CP 1.2 K, 1 canal 1X1200W

Descriere

MANUAL

Specificatii generale

• Canale: 1
• Clasa de amplificare: D

Sursa alimentare

• Voltaj nominal sursa alimentare (siguranta): 11 ÷ 15 VDC (2 x 35 A)
• Voltaj de operare al sursei de alimentare: 9 ÷ 18 VDC
• Consum de curent fara sarcina: 0.85 A
• Consum de curent în stand-by: 4.5 µA
• Consum maxim de curent: 50 A

Remote IN

• 4 ÷ 17 VDC (1 mA)

ART - Automatic Remote Turn on/off from SPK-IN (BTL radio only): 1.5 VDC

Eficienta: 89%

Amplifier Stage

• Distorsiune - THD @ 100 Hz, 70% Rated Power: 0,03 %
• Damping factor @ 1 kHz, 1W: 140
• Latime de banda @ -3 dB: 10 Hz ÷ 500 Hz
• S/N ratio (A-weighted @ 1 V Input): 102 dBA

Impedanta de încarcare minima

• @ 1 Ch: 2 Ω

Crossover ajustabil: Da

Intrari / Filtre

• Intrari: Pre-In / Speaker-In
• Pre Out: Hi-Pass 50 ÷ 250 Hz @ 12 dB/Oct.
• Sensibilitate intrare mica: 0.32 ÷ 8 VRMS
• Sensibilitate intrare mare: 1.6 ÷ 40 VRMS
• Sub Ch Lo-Pass: OFF / 50 ÷ 250 Hz @ 24 dB/Oct.
• Bass Boost 50 Hz: 0 ÷ 9 dB
• Subsonic Hi-Pass: OFF / 25 Hz @ 24 dB/Oct.
• Control subwoofer: -20 ÷ 6 dB (Activ pe Rear Ch cu LPF ON)

Putere

• Putere de iesire (RMS) @ 1% THD
  • 1Ch @ 4Ω: 650 W x 1
  • 1Ch @ 2Ω: 1200 W x 1
• Putere totala: 1200 W
