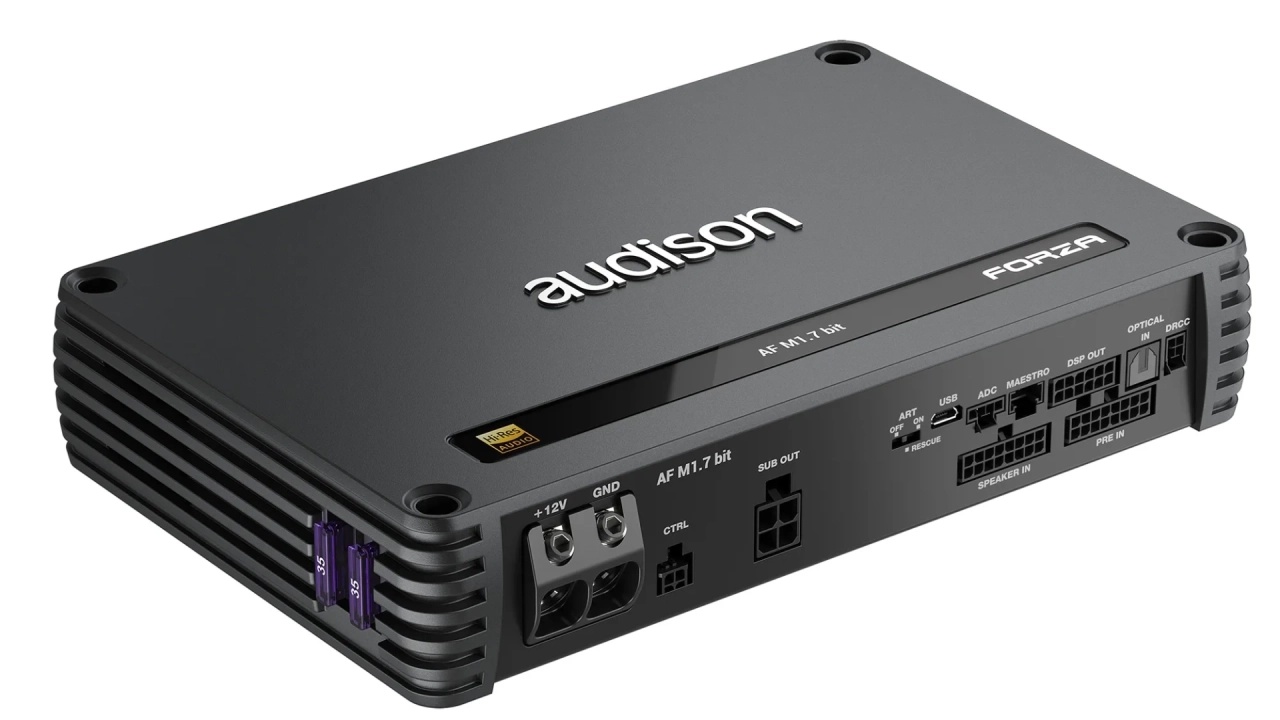

Amplificator auto AUDISON Forza AF M1.7 BIT, 1 canal 1200W cu DSP

Descriere

MANUAL

Specificatii generale

• Canale: 1
• Clasa: D-Class
• Eficienta: 84%

Voltaj sursa alimentare / siguranta

• 11 ÷ 15 VDC / 2 x 35A

Consum curent

• Fara sarcina: 1.15 A
• @ 14.4 VDC, 2Ω, Putere maxima muzicala: 65 A

Remote

• IN: 4 ÷ 15 VDC (1 mA)
• OUT: 6.5 ÷ 15 VDC (150 mA)
• ART - Automatic Remote Turn on/off from OUTPUT BTL speakers: 1.5 VDC

Amplificare

• Distorsiuni - THD @ 1 kHz, 4Ω, 70% Rated Power: 0,03 %
• Latime banda @ -1.5 dB: 10Hz ÷ 600 Hz
• Damping factor @ 1 kHz, 4Ω, 2 VRMS: 140
• S/N ratio (A weighted @ 1 V Input)
  • Master Input: 105 dBA
  • Optical Input: 105

Putere totala RMS: 1200 W

Impedanta de încarcare minima: 1Ω

Iesire putere continua (RMS) @14.4 VDC, 1% THD

• 1Ch @ 4Ω: 600 W x 1
• 1Ch @ 2Ω: 1000 W x 1
• 1Ch @ 1Ω: 1200 W x 1

Crossover ajustabil: Da

CEA Specifications

• Output power @ 4, 1% THD+N, 14.4 V: 600 W
• SN ratio (ref. 1W output): 81 dB

Intrari / iesiri

• Sensibilitate intrare mica: 0.6 ÷ 6 VRMS (15 KΩ Imp.)
• Digital Input: Da
• Pre Outputs: 6
• Hi Level Inputs: 8
• Low Level Inputs: 8
• Speaker-In Inputs: 2.2 ÷ 22 VRMS (5 Ω Imp.)
• Digital IN:
  • 1 x Optical S/PDIF; Max 192 kHz / 24 bit
  • 1 x Optical/Coaxial S/PDIF (cu F2O card optional)

Digital Signal Processor

• Filter type: Full / High-Pass / Low-Pass / Band-Pass
• Filter mode and slope:
  • Linkwitz-Riley @ 12/24/36/48 dB/Oct.
  • Butterworth @ 6/12/18/24/30/36/42/48 dB/Oct.
  • Bessel @ 6/12/18/24/30/36/42/48 dB/Oct.
  • Chebyshev @ 6/12/18/24/30/36/42/48 dB/Oct.
  • QLP @ 6 dB/Oct.
• Frecventa crossover: 20 Hz ÷ 20 kHz
• Analog Input Equalizer (20 ÷ 20k Hz): 12 Biquad + Delay
• Time Alignment Distance: 0 ÷ 510 cm / 0 ÷ 200.8 inches
• Time Alignment Delay: 0 ÷ 15 ms
• Input Output Real Time Audio Monitor: RTA

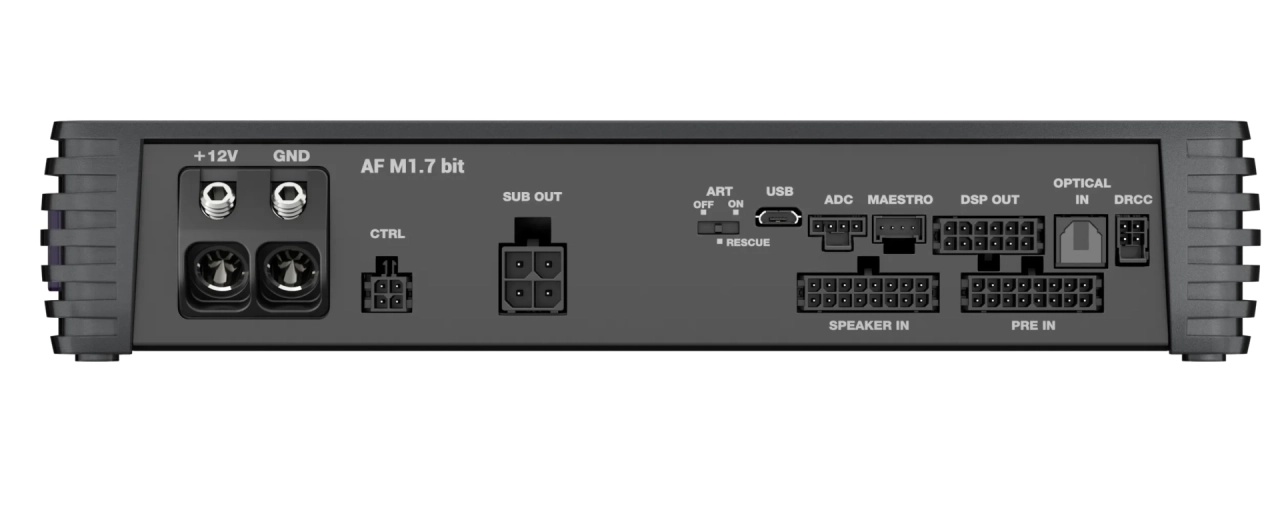

Control si conexiuni

• DRC Port: Input pentru DRC AC remote control (optional)
• ADC Port: Management pentru alte dispozitive Audison compatibile
• Firul 1: Functii personalizabile (+12 V activat)
• Firul 2: Functii personalizabile (+12 V activat)

Cerinte generale

• Conexiuni PC: Micro USB 1.1 / 2.0 / 3.0 compatibil
• Cerinte Software/PC: Windows 10, Windows 11 (min. rez. 1024 x 768)
• Temperatura ambientala de lucru: 0 °C ÷ 55 °C (32 °F ÷ 131 °F)

Dimensiuni: 240 x 47 x 156 mm / 9.44 x 1.85 x 6.14 inch

Greutate: 1.95 kg
