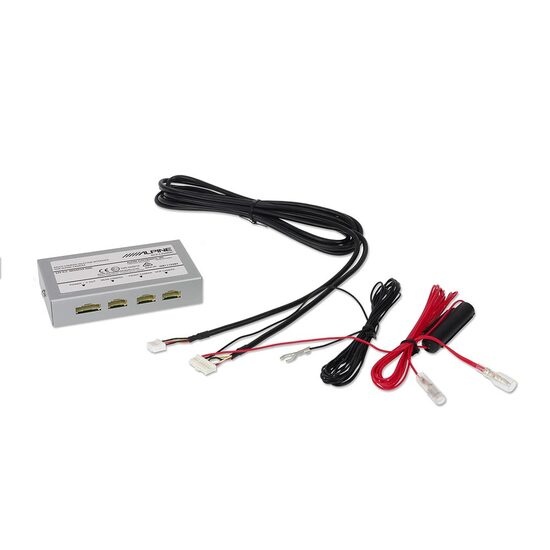

Interfață de selectare multiple camere KCX-C250MC pentru Alpine
527,71 RON
Livrare gratuita
Leírás
Interfață de selectare multiple camere pentru Alpine
- Permite conectarea a până la trei camere cu conexiune directă Alpine.
- Camerele Alpine față, spate și laterale pot fi controlate de pe ecranul unității principale.
- Pur și simplu selectați vizualizarea camerei de pe ecranul tactil al aparatului.
- Funcționează cu cele mai noi aparate Alpine cu intrare directă pentru cameră.
Caracteristici tehnice:
General
- Enables connection for up to three Alpine cameras with Direct Camera Connection
- Supports power supply for direct cameras
- Supports Alpine Multiview Cameras, you can switch between up to 4 different camera views - depending on the camera: Panorama-, Back-, Corner- and Top-view.
- Required for using front, rear and side cameras at once
- Includes required video and power cables
- Compatible with INE-W997D, X701D-A4R, X701D-A5, X701D-Q5, X801D-U, X901D-G7 (required Software: 2.xxx or higher)
Specifications
- Input / output: 3x Input / 1x Output
- Output Image: Normal image, CVBS (NTSC Video signal) 16:9 Image output for wide-screen
- Image Output impedance: 75 Ohm (1Vp-p)
- Power Requirement: 9.0 to 15.6 V DC
- Power Consumption: Less than 0.6W (12V)
- Output voltage: 6V (DC)
- Operating Temperature: -30°C - +70°C
- Weight Power Section: 172g (box only)
Dimensions:
- Power Unit: 106 x 60 x 22mm
- Power Unit Cable: 3m
